Ports VS Blackboard

BT.CPP is the only implementation (to our knowledge) of Behavior Tree that introduces the concept of Input/Output Ports, as an alternative to Blackboards.

To be more specific, Ports are an interface that adds a level of indirection and additional semantics to the blackboard.

To understand why using Ports is recommended and using directly the Blackboard is discouraged, we should first understand some of the core principles of BehaviorTree.CPP.

Goals of BT.CPP​

Model Driven Development​

It is not the purpose of this article to explain what Model Driven Development is. But, in short, we want to build a "model" of our Nodes, i.e. some kind of meta-information that tells us how the Node interacts with the rest of the tree.

Models are important both for developers (being self-documenting) and for external tools, such as visual editors, being Groot2 a notable example, or static analyzers.

We believe that the description of the data-flow between Nodes must be part of the model. Additionally, we want to clearly express if a blackboard entry is being written (output), read (input) or both.

Consider this example:

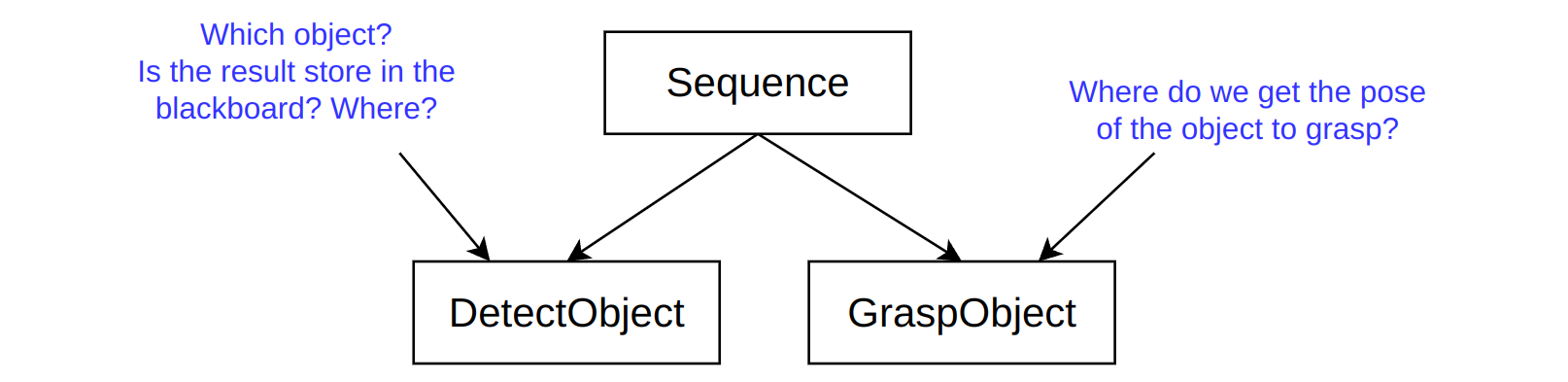

no_ports

In other implementations (or if anybody uses this library inappropriately...) the only way to know if these two Nodes communicate and depend on each other is either:

  • inspecting the code: something that we want to avoid.
  • or reading the documentation: but documentation is not guaranteed to be accurate and up to date.

Instead, if Input/Output ports are part of the model, the intent of the Node and it relationship with the others become more explicit:

with_ports

Nodes composibility and Subtree scoping​

Ideally, we want to offer a platform that allows Behavior Designers to build trees (i.e., "compose Nodes") implemented by different vendors / users.

But when the Blackboard is used directly, name-collision will become immediately an issue.

Think about common names such as goal, results, target, value, etc.

For instance, the Nodes GraspObject and MoveBase may be developed by different people and they both read the entry target from the blackboard. Unfortunately, they have different meanings and the type itself is different: the former expects a 3D pose, whilst the latter a 2D one.

Ports offer one level of indirection, called also "remapping", as explained in Tutorial 2.

This means that, no matter which name is used when defining the Port (that name is "hardcoded" into your C++ implementation), you can always "remap" it to a different blackboard entry into your XML, without modifying the source code.

The same is true for Subtrees remapping, explained in Tutorial 6. Being the Blackboard a glorified map of global variables, it scales very poorly. There is a reason why global variables are a no-no in programming!

Ports remapping offers a solution to this problem.

Summary: never use the Blackboard directly​

You should do this:

// example code in your tick()
getInput("goal", goal);
setOutput("result", result);

and avoid as much as possible this:

// example code in your tick()
config().blackboard->get("goal", goal);
config().blackboard->set("result", result);

Both these codes may technically work, but the latter (direct access to the blackboard) is considered bad practice and it is highly discouraged:

The problems with the 2nd version, i.e. the direct access to the blackboard:

  1. Names "goal" and "result" are hard-coded. To change them, you must recompile your application. Port, instead, can be remapped at run-time, modifying only the XML.

  2. The only way to know if a Node reads or writes one or more entries of the blackboard, is by inspecting the code. Up to date documentation is a solution, but the Port model is self-documenting.

  3. The BehaviorTreeFactory is unaware that those blackboard entries are being accessed. In contrast, when using Ports, we are able to introspect how ports communicate to each other and also to check at deployment time if the connection is done correctly.

  4. It may not work as expected when using SubTrees.

  5. The template specialization convertFromString() will not work correctly.
